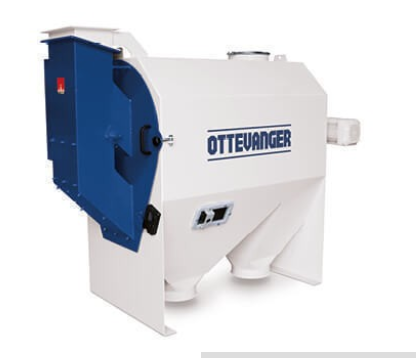

The pre-cleaners are designed to safeguard the plant equipment against foreign objects. Its ideal application is in the intake line of raw materials shortly after the intake of raw materials. The Ottevanger pre-cleaner seperates pieces of wood, stones, clothes etc. from the mainstream. In general, items that can cause damages to transport – and process equipment. For situations where raw materials may be contaminated with ropes and strings, a proven catching device can be installed.
The cleaner consists of a rotating drum, clad with a mesh screen with holes of 40×40 mm. The material is fed to the inside of the drum. The good material passes the screen and is normally send to an external magnet. The oversized material is transported by flight to the back of the machine and collected in the second outlet.
The inlet section of the machine contains a manually operated bypass valve and is fitted with replaceable wearing plates made of manganese steel.
